Deck Building Set, 11 pcs.

The complete set for fast, precise deck installation

installation clamp (incl. 2 interchangeable clamping jaws for converting the one-hand clamp) and 5 spacing guides for a uniform deck board laying pattern

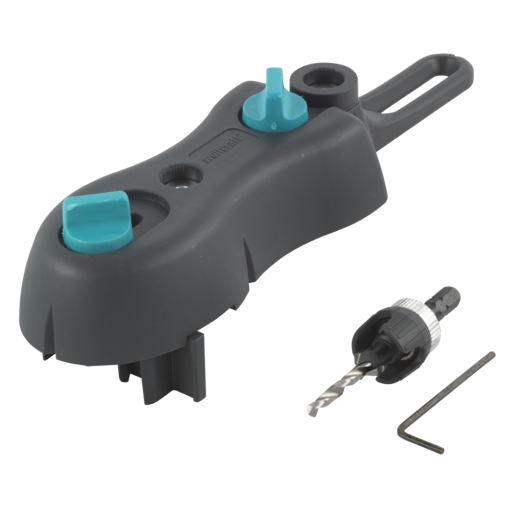

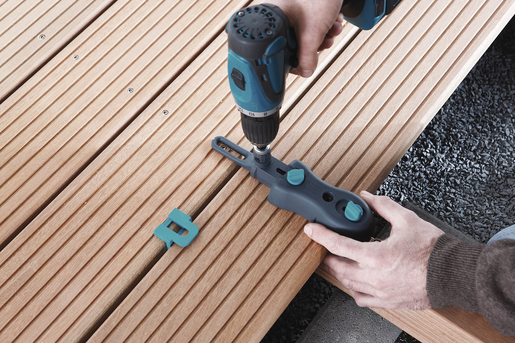

deck board drilling guide for exact positioning and guided predrilling of the drill holes in a line
screw starter with countersink and depth stop for repeat drill holes with the same drilling and countersinking depth

Product details

Product description

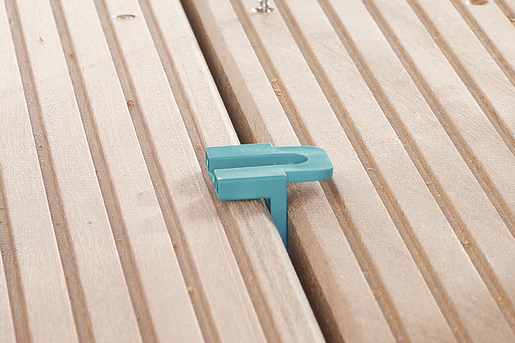

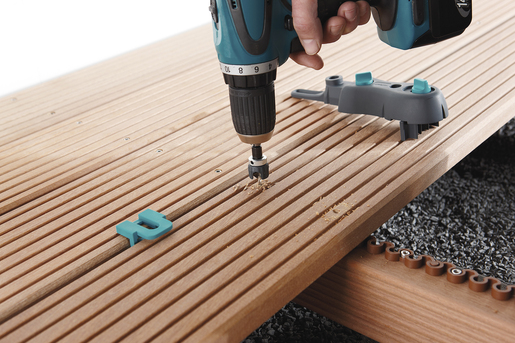

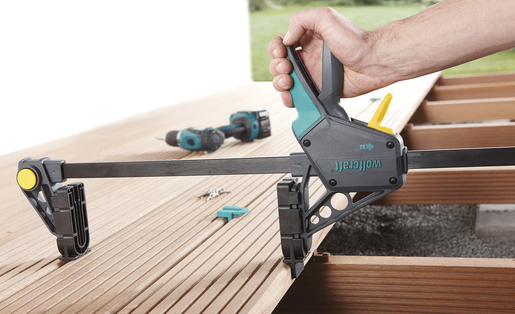

This 11-piece deck building set contains everything you need for fast and precise deck installation. This guarantees the perfect look for your wooden deck. The sturdy spacing guides for deck boards enable you to achieve an accurate joint pattern, with gaps of either 6 or 8 mm. The set includes five spacing guides, which you can place between the boards at intervals of 80 – 100 cm. You then pull the boards together using the installation clamp, and in so doing reliably offset any irregularities in board widths. The 2 green clamping jaws additionally included also let you use the installation clamp as a one-hand clamp. Simply remove the black jaws and replace them with the green ones. This means the installation clamp will come in useful after your deck project as well. In the next step, you align the drill holes using the deck board drilling guide. You can adjust the drilling guide to a board width of 100 - 145 mm. To prepare the screw connection, drill into the front drill bush first and then into the rear drill bush using the screw starter and countersink. The bushes are made of hardened steel and safely guide the drill. The screw starter with countersink and 4 mm HSS drill bit is included. It has a depth stop for making repeat drill holes with the same drilling and countersinking depth. A cleverly designed set for the best deck building results.

Properties

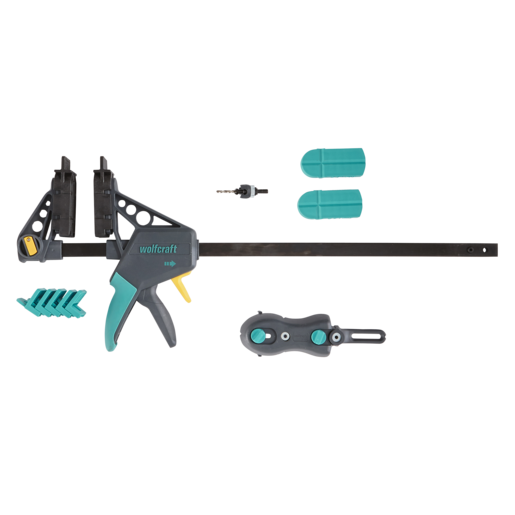

installation clamp, deck board drilling guide, screw starter with countersink and 4 mm HSS drill bit and 5 spacing guides for fast and precise deck installation in an attractively priced value set
2 additional interchangeable clamping jaws for converting the installation clamp to a one-hand clamp
installation clamp and spacing guides for fast and exact alignment of the boards and an accurate joint pattern
deck board drilling guide for exact positioning of the drill holes in a line depth stop guarantees perfect drilling and countersinking depth every time
high quality "Made in Europe"

Scope of delivery

Parts in set

Videos

Select Options

Shops	Article number	Contents	Parts in set	EAN
	6988000	1	11 pcs.	4006885698802

Spare parts

If you have questions or want to order a spare part, please contact wolfcraft customer service.
Click here to order spare parts.

ID	Name
115980288	Clamping jaw assembly group 3030ff
116610289	Clamping jaw 6985
116620799	Protection Cap (2 V-Pad) (old no. 116620689)
