Furniture Cam Lock Kit

Complete kit for screw joints in furniture construction

easily create separable edge-to-edge, corner and T-butt joints, as well as drill hole rows
step-by-step instructions and video tutorial
including enough fastener parts for a furniture carcass

Product details

Product description

With the furniture cam lock kit, you can make furniture with screwed edge-to-edge, corner and T-butt joints, as well as drill hole rows. Unlike glued furniture, these can be disassembled and reassembled at any time. Cam locks are ideal for building cabinets, shelves, dressers, drawers, tables, chairs and other custom furniture. Additionally, the set can also be used to repair damaged cam locks and dowel joints. Illustrated step-by-step instructions and a video tutorial will guide you to successful completion of the project.

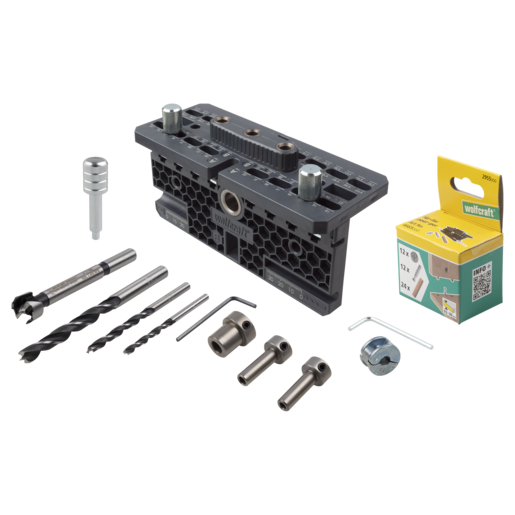

The practical case contains the two-part drilling template made of high-quality plastic and all the necessary drill bits with depth stops for depth-restricted drilling. Additionally, the kit contains enough furniture connectors and dowels to build a furniture carcass.

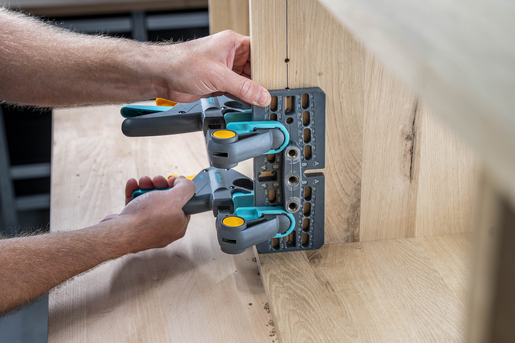

The joints between the wooden elements are created with cam screws, cam nuts and wood dowels. The two-piece drilling template is used to determine the correct hole positions and drilling depths, which are then accurately drilled into the furniture elements to be connected using the drill bits fitted with depth stops. Additionally, the drilling template is equipped with a 32 mm standard hole pattern, which can be used to create rows of holes, for example for adjustable shelves.
The furniture cam lock kit is a high-quality product “Made in Europe” that offers a long service life backed by a 10-year warranty.
All materials are also available separately from wolfcraft (art. no. 2955000).

Properties

complete kit for creating or repairing separable wood joints – ideal for furniture projects
illustrated step-by-step instructions and a video tutorial help to make every project a success

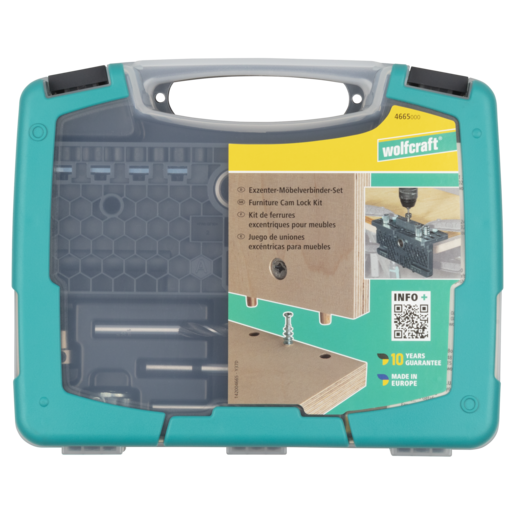

in a high-quality plastic case for practical and orderly storage
quality “Made in Europe”, with a 10 year warranty

2-part drilling template
flexible use: edge-to-edge, corner and T-butt joints, as well as drill hole rows
includes 2 knurled screws for fastening the template without tools
includes 1 stop pin for aligning the template at the workpiece
scale and hole pattern for easy adjustment to the correct material thickness

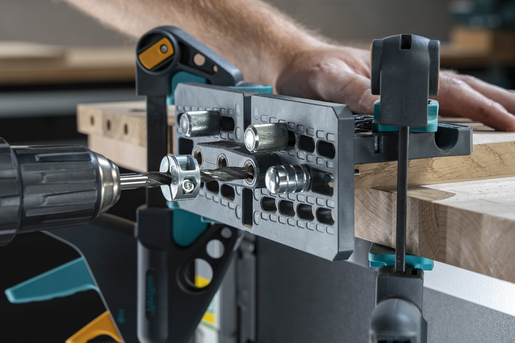

3 drill bushes made of metal for guided drilling at a 90° angle using the wood twist drill bits
1 drill bush made of metal for guided drilling at a 90° angle with the Forstner drill bit
32 mm hole pattern for marking drill holes the standard distance apart – ideal for adjustable shelves
depth stop setup aid for easily adjusting the depth stop to the required drilling depth
alignment window for correctly aligning the template to the marked lines
versatile, can be used for boards with a thickness of 15-30.5 mm
sturdy design made of high-quality plastic for a long service life
